Interpret whole-slide clinical predictions¶
Run ABMIL inference on HistAgent tile representations, map tile-level scores back to tissue and analyze patient-level prognostic risk.
Installation¶
Create a Python 3.10+ environment, install the public HistAgent package and add the lightweight analysis dependencies used by these notebooks.
git clone https://github.com/zipging/HistAgent.git
cd HistAgent
python -m venv .venv
source .venv/bin/activate
python -m pip install -e .
python -m pip install jupyter numpy pandas matplotlib seaborn scipy scikit-learn torch huggingface-hub
If data/ is absent, the notebook downloads its data from
wli13/HistAgent-data. These examples run without a GPU. Running HistAgent on
new images requires access to the gated Prov-GigaPath model and an authenticated
Hugging Face session.
Setup¶
Import the analysis packages, locate the tutorial data and set the plotting style.
from pathlib import Path
import json
import os
import numpy as np
import pandas as pd
import matplotlib.pyplot as plt
import seaborn as sns
configured_data = os.getenv("HISTAGENT_TUTORIAL_DATA", "").strip()
DATA_DIR = Path(configured_data).expanduser() if configured_data else Path("data")
if not DATA_DIR.exists():
from huggingface_hub import snapshot_download
snapshot = Path(
snapshot_download(
"wli13/HistAgent-data",
repo_type="dataset",
allow_patterns=["tutorials/**", "manifest.json"],
)
)
DATA_DIR = snapshot / "tutorials"
assert DATA_DIR.exists(), f"Tutorial data not found: {DATA_DIR}"
def rankridge_pack_root(groups):
configured = os.getenv("HISTAGENT_RANKRIDGE_PACKS", "").strip()
if configured:
root = Path(configured).expanduser()
if not (root / groups[0]).exists():
root = root / "rankridge_tutorial_packs"
assert (root / groups[0]).exists(), f"RankRidge pack not found: {root}"
return root
from huggingface_hub import snapshot_download
snapshot = Path(
snapshot_download(
"wli13/HistAgent-data",
repo_type="dataset",
allow_patterns=[
f"rankridge_tutorial_packs/{group}/**" for group in groups
],
)
)
return snapshot / "rankridge_tutorial_packs"
sns.set_theme(style="white", context="talk")
plt.rcParams.update({
"figure.dpi": 135,
"figure.facecolor": "white",
"axes.facecolor": "white",
"axes.spines.top": False,
"axes.spines.right": False,
"axes.edgecolor": "#000000",
"axes.labelcolor": "#000000",
"axes.linewidth": 1.25,
"axes.grid": False,
"xtick.color": "#000000",
"ytick.color": "#000000",
"text.color": "#000000",
"font.size": 10,
"axes.titlesize": 12,
"axes.labelsize": 10.5,
"xtick.labelsize": 9,
"ytick.labelsize": 9,
"legend.fontsize": 9,
"figure.titlesize": 12,
})
COLORS = {
"HistAgent": "#168267",
"Measured ST": "#6f7477",
"STPath": "#cb77a0",
"OmiCLIP": "#69aec7",
}
SURVIVAL_COLORS = {"High risk": "#EF4635", "Low risk": "#39B8CE"}
REGION_COLORS = {
"Poor": "#d85f6b",
"High": "#79a9d1",
"Negative": "#b7b7b7",
"Tumor": "#e32925",
"Stroma": "#62acec",
}
TASK_CMAPS = {
"svg": "YlGnBu",
"domain": "tab10",
"deconv": "Greens",
"deg": "Purples",
"pathway": "PuBuGn",
}
Overview¶
Run a trained ABMIL model on HistAgent tile representations, compare the resulting scores across annotated tissue regions and calculate patient-level prognostic risk.
import torch
from torch import nn
from scipy.ndimage import gaussian_filter, maximum_filter
from scipy.stats import mannwhitneyu, chi2
clinical_meta = json.loads((DATA_DIR / "clinical_cases.json").read_text())
survival = pd.read_csv(DATA_DIR / "figure4_survival_oof.csv")
reported = pd.read_json(DATA_DIR / "fig4d_summary.json")
print(f"Clinical examples: {len(clinical_meta['cases'])}")
print(f"Out-of-fold patients: {survival['case_id'].nunique():,}")
Run clinical inference¶
The instance encoder maps each 512-dimensional HistAgent representation to a 256-dimensional tile representation. The trained prediction head then produces a subtype probability or survival-risk score for each tile. The two STAD examples average predictions from five trained ABMIL models; gated attention aggregates the same tile representations for slide-level prediction.
class GatedAttention(nn.Module):
def __init__(self, in_dim=256, hidden=256):
super().__init__()
self.v = nn.Linear(in_dim, hidden)
self.u = nn.Linear(in_dim, hidden)
self.w = nn.Linear(hidden, 1)
def forward(self, h):
logits = self.w(
torch.tanh(self.v(h)) * torch.sigmoid(self.u(h))
).squeeze(-1)
weights = torch.softmax(logits, dim=0)
return torch.sum(h * weights[:, None], dim=0), weights
class ABMIL(nn.Module):
def __init__(self, in_dim=512, n_classes=1):
super().__init__()
self.encoder = nn.Sequential(
nn.Linear(in_dim, 512),
nn.LayerNorm(512),
nn.ReLU(),
nn.Dropout(0.25),
nn.Linear(512, 256),
nn.ReLU(),
)
self.attn = GatedAttention()
self.head = nn.Linear(256, n_classes)
def forward(self, x):
h = self.encoder(x)
slide, attention = self.attn(h)
return self.head(slide), attention
class HistAgent:
"""Clinical inference interface used throughout this tutorial."""
def __init__(self, data_dir, case_metadata, device="cpu", batch_size=4096):
self.data_dir = Path(data_dir)
self.case_metadata = {
row["case"]: row for row in case_metadata["cases"]
}
self.device = torch.device(device)
self.batch_size = batch_size
self._tile_predictions = {}
self._slide_predictions = {}
def _case(self, case_id):
if case_id not in self.case_metadata:
raise KeyError(f"Unknown clinical case: {case_id}")
return self.case_metadata[case_id]
def load_case(self, case_id):
"""Load one slide's representations, coordinates and ROI labels."""
info = self._case(case_id)
with np.load(self.data_dir / info["embedding_file"]) as arrays:
return {
"embeddings": arrays["embeddings"].astype(np.float32),
"coords": arrays["coords"].copy(),
"region_codes": arrays["regions"].copy(),
}
def _checkpoint_files(self, info):
if "checkpoints" in info:
return info["checkpoints"]
return [info["checkpoint"]]
def _load_abmil(self, info, checkpoint_file):
model = ABMIL(n_classes=info["n_classes"]).to(self.device)
state = torch.load(
self.data_dir / checkpoint_file,
map_location=self.device,
weights_only=True,
)
model.load_state_dict(state)
return model.eval()
def _encode_tiles(self, model, embeddings):
batches = []
for start in range(0, len(embeddings), self.batch_size):
x = torch.from_numpy(
embeddings[start:start + self.batch_size]
).to(self.device)
batches.append(model.encoder(x))
return torch.cat(batches)
def _forward_checkpoint(self, model, embeddings, info):
with torch.no_grad():
encoded = self._encode_tiles(model, embeddings)
tile_logits = model.head(encoded)
slide_representation, attention = model.attn(encoded)
slide_logits = model.head(slide_representation)
if info["n_classes"] > 1:
tile_score = torch.softmax(tile_logits, dim=1)[
:, info["target_index"]
]
slide_score = torch.softmax(slide_logits, dim=0)[
info["target_index"]
]
else:
tile_score = tile_logits[:, 0]
slide_score = slide_logits[0]
return (
tile_score.cpu().numpy(),
attention.cpu().numpy(),
float(slide_score.cpu()),
)
def predict_tiles(self, case_id):
"""Calculate tile scores and attention weights for one slide."""
if case_id in self._tile_predictions:
return self._tile_predictions[case_id].copy()
info = self._case(case_id)
case = self.load_case(case_id)
score_sum = np.zeros(len(case["embeddings"]), dtype=np.float64)
attention_sum = np.zeros_like(score_sum)
slide_scores = []
checkpoints = self._checkpoint_files(info)
for checkpoint_file in checkpoints:
model = self._load_abmil(info, checkpoint_file)
score, attention, slide_score = self._forward_checkpoint(
model, case["embeddings"], info
)
score_sum += score
attention_sum += attention
slide_scores.append(slide_score)
region_labels = [
"Unannotated" if code < 0 else info["region_names"][int(code)]
for code in case["region_codes"]
]
frame = pd.DataFrame({
"cohort": info["cohort"],
"case": case_id,
"x": case["coords"][:, 0],
"y": case["coords"][:, 1],
"region_code": case["region_codes"],
"region": region_labels,
"score": score_sum / len(checkpoints),
"attention": attention_sum / len(checkpoints),
})
self._tile_predictions[case_id] = frame
self._slide_predictions[case_id] = {
"cohort": info["cohort"],
"case": case_id,
"tiles": len(frame),
"annotated_tiles": int((frame["region_code"] >= 0).sum()),
"models": len(checkpoints),
"slide_score": float(np.mean(slide_scores)),
}
return frame.copy()
def predict_slide(self, case_id):
"""Return the attention-aggregated slide prediction."""
if case_id not in self._slide_predictions:
self.predict_tiles(case_id)
return self._slide_predictions[case_id].copy()
def run(self, case_ids=None):
"""Run the complete tile- and slide-level inference workflow."""
case_ids = case_ids or list(self.case_metadata)
tile_frames = [self.predict_tiles(case_id) for case_id in case_ids]
slide_rows = [self.predict_slide(case_id) for case_id in case_ids]
return pd.concat(tile_frames, ignore_index=True), pd.DataFrame(slide_rows)

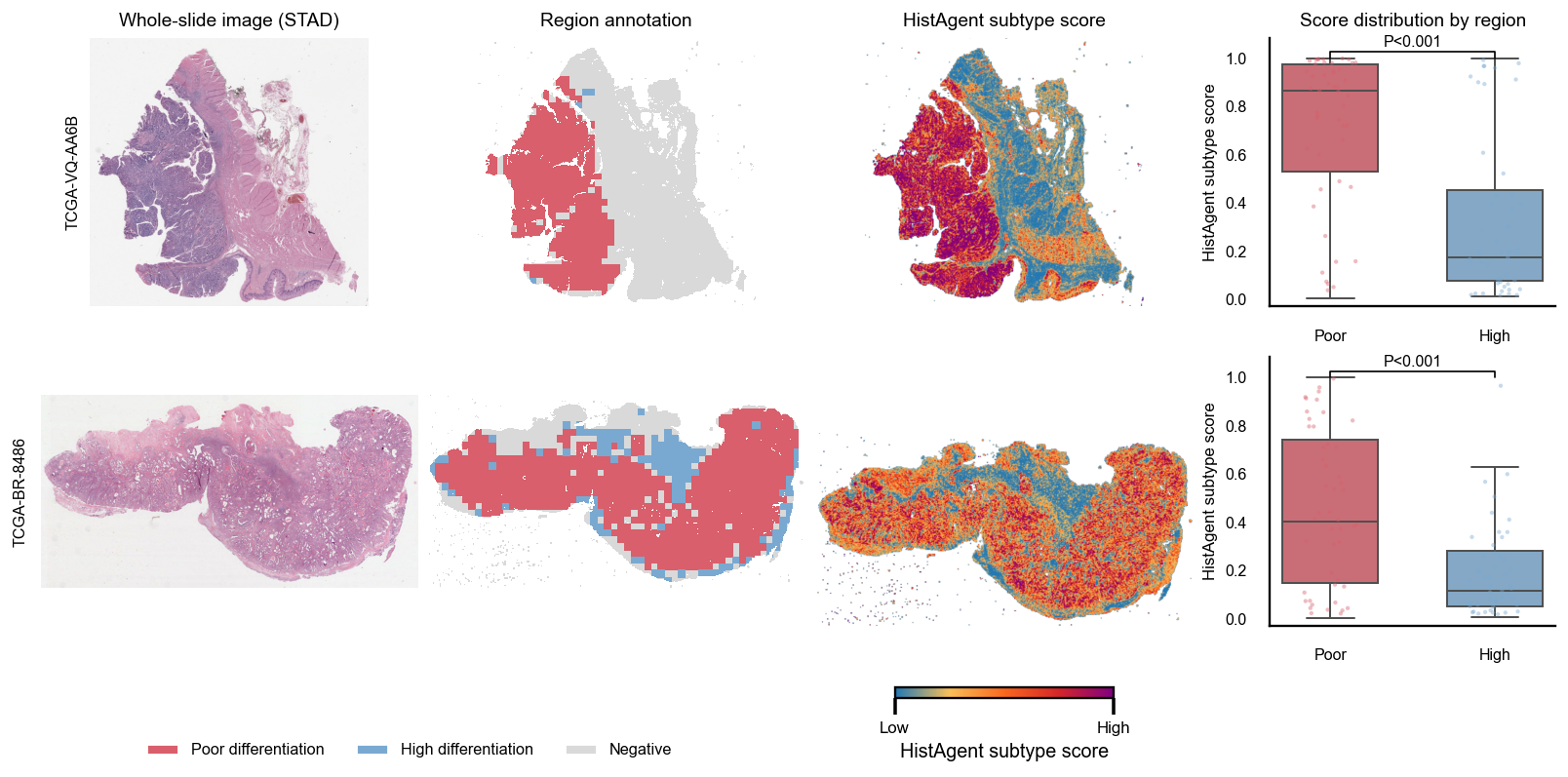

def compare_regions(self, frame, region_1, region_2):
"""Test whether scores are higher in region_1 than region_2."""
a = frame.loc[frame["region"] == region_1, "score"].to_numpy()
b = frame.loc[frame["region"] == region_2, "score"].to_numpy()
test = mannwhitneyu(a, b, alternative="greater")
return {
"comparison": f"{region_1} > {region_2}",
"n_1": len(a),
"n_2": len(b),
"Mann–Whitney P": test.pvalue,
}

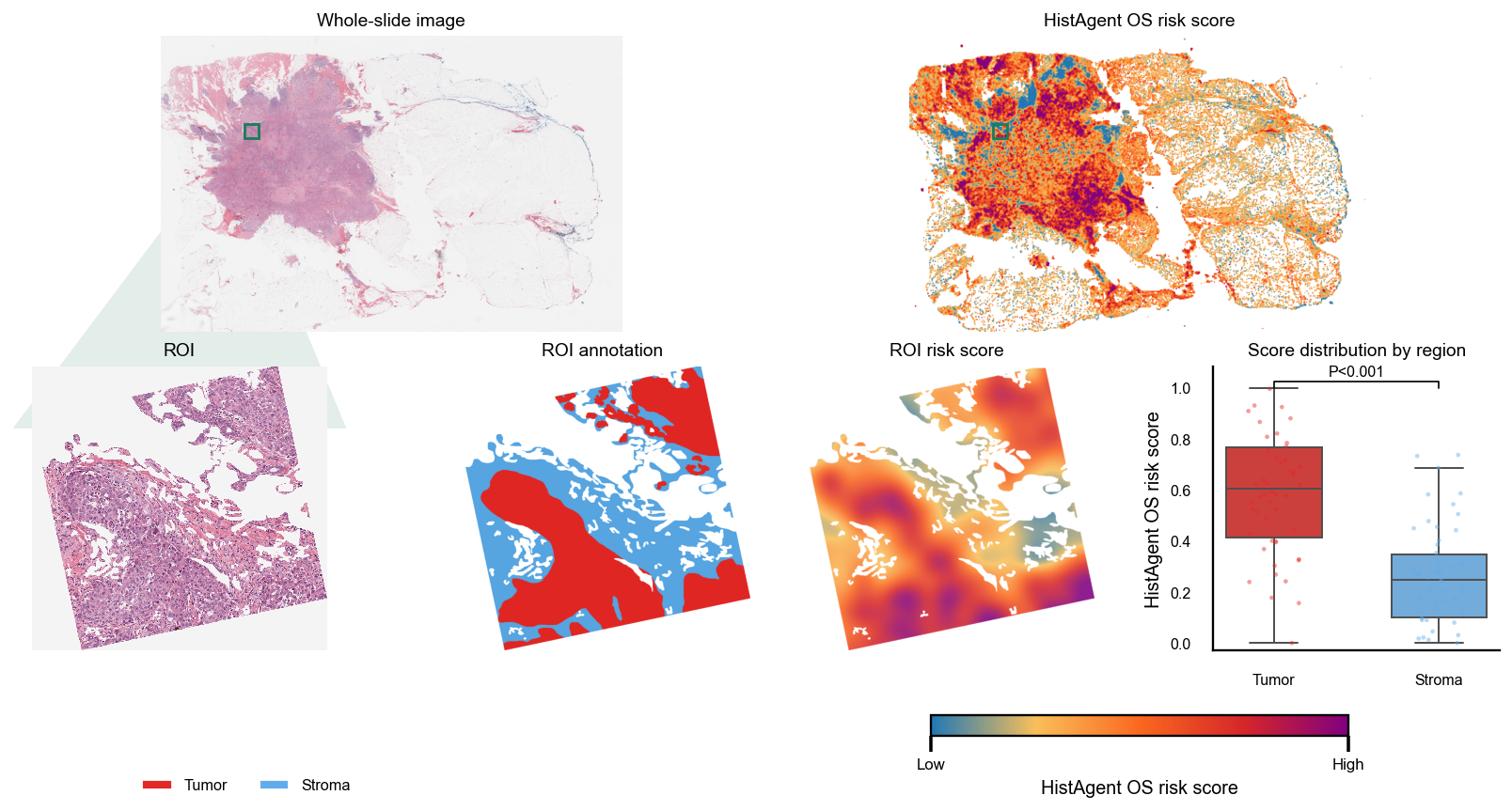

def map_scores(
self, frame, bounds, tile_size, width=900, smooth=False
):
"""Map tile footprints to a field in the original WSI coordinates."""
xmin, ymin, xmax, ymax = bounds
height = max(1, round(width * (ymax - ymin) / (xmax - xmin)))
weighted = np.zeros((height, width), dtype=np.float32)
counts = np.zeros((height, width), dtype=np.float32)
for row in frame.itertuples():
left = int(np.floor((row.x - xmin) / (xmax - xmin) * width))
right = int(np.ceil(
(row.x + tile_size - xmin) / (xmax - xmin) * width
))
top = int(np.floor((row.y - ymin) / (ymax - ymin) * height))
bottom = int(np.ceil(
(row.y + tile_size - ymin) / (ymax - ymin) * height
))
left, right = max(0, left), min(width, right)
top, bottom = max(0, top), min(height, bottom)
if left >= right or top >= bottom:
continue
weighted[top:bottom, left:right] += row.score
counts[top:bottom, left:right] += 1
tissue = counts > 0
field = np.divide(
weighted, counts, out=np.zeros_like(weighted), where=tissue
)
if smooth:
sigma = max(0.8, tile_size / (xmax - xmin) * width * 0.6)
smoothed_weight = gaussian_filter(field * tissue, sigma=sigma)
smoothed_mask = gaussian_filter(tissue.astype(float), sigma=sigma)
field = np.divide(
smoothed_weight, smoothed_mask,
out=np.zeros_like(field), where=smoothed_mask > 1e-5,
)
low, high = np.percentile(field[tissue], [2, 98])
normalized = np.clip(
(field - low) / (high - low + 1e-9), 0, 1
)
return normalized, tissue
@staticmethod

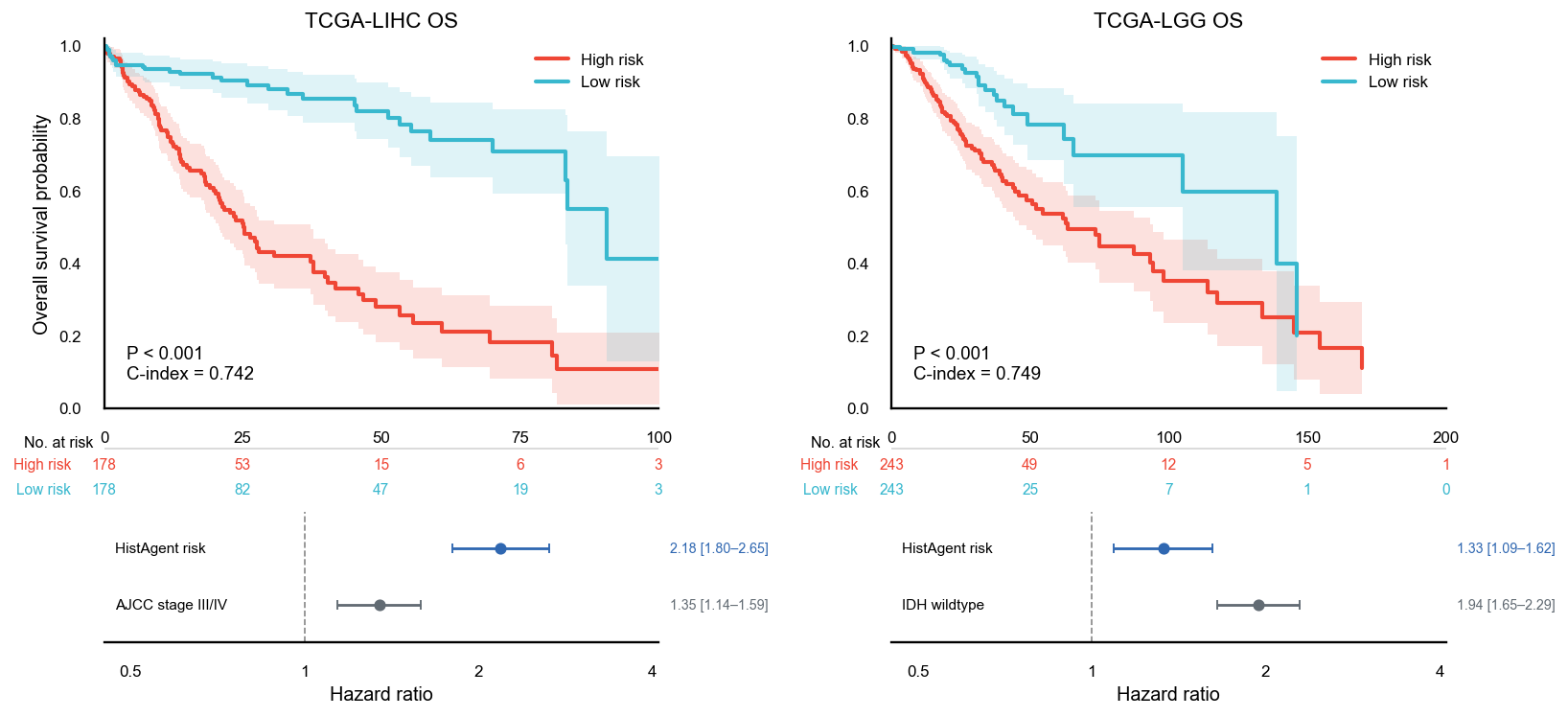

def kaplan_meier(time, event):
order = np.argsort(time)
time = np.asarray(time)[order]
event = np.asarray(event)[order].astype(int)
event_times = np.unique(time[event == 1])
surv = 1.0
variance_sum = 0.0
xs, ys, lower, upper = [0.0], [1.0], [1.0], [1.0]
for t in event_times:
at_risk = np.sum(time >= t)
deaths = np.sum((time == t) & (event == 1))
se_before = surv * np.sqrt(variance_sum)
xs.extend([t, t])
ys.extend([ys[-1], surv * (1 - deaths / at_risk)])
lower.append(max(0, surv - 1.96 * se_before))
upper.append(min(1, surv + 1.96 * se_before))
if at_risk - deaths > 0:
variance_sum += deaths / (at_risk * (at_risk - deaths))
surv = ys[-1]
se_after = surv * np.sqrt(variance_sum)
lower.append(max(0, surv - 1.96 * se_after))
upper.append(min(1, surv + 1.96 * se_after))
return (
np.asarray(xs), np.asarray(ys),
np.asarray(lower), np.asarray(upper),
)
@staticmethod
def logrank_p(time, event, group):
time = np.asarray(time)
event = np.asarray(event).astype(int)
group = np.asarray(group).astype(bool)
observed = expected = variance = 0.0
for t in np.unique(time[event == 1]):
at_risk = time >= t
n = at_risk.sum()
n1 = (at_risk & group).sum()
d = ((time == t) & (event == 1)).sum()
d1 = ((time == t) & (event == 1) & group).sum()
if n <= 1:
continue
observed += d1
expected += d * n1 / n
variance += (
d * (n1 / n) * (1 - n1 / n) * ((n - d) / (n - 1))
)
statistic = (observed - expected) ** 2 / variance
return chi2.sf(statistic, 1)
agent = HistAgent(DATA_DIR, clinical_meta)
tiles, inference_summary = agent.run()
display(inference_summary.round(3))
tiles.query("region_code >= 0").groupby(
["cohort", "case", "region"]
).agg(
tiles=("score", "size"),
mean_score=("score", "mean"),
).round(3)
Compare annotated tissue regions¶
The same tile scores are used for the spatial maps and the region-level tests. STAD compares poorly and highly differentiated tissue; BRCA compares tumor and stroma within the annotated ROI.
expected_region_pairs = {
"STAD": ("Poor", "High"),
"BRCA": ("Tumor", "Stroma"),
}
region_tests = []
for (cohort, case), frame in tiles.groupby(["cohort", "case"]):
region_1, region_2 = expected_region_pairs[cohort]
result = agent.compare_regions(frame, region_1, region_2)
region_tests.append({
"cohort": cohort,
"case": case,
**result,
})
region_tests = pd.DataFrame(region_tests)
region_tests
Spatial visualization of clinical scores¶
Map the computed tile-level scores back to the two STAD whole-slide examples and the BRCA ROI.
from matplotlib.cm import ScalarMappable
from matplotlib.colors import LinearSegmentedColormap, Normalize, to_rgba
from matplotlib.patches import Patch, Rectangle, Polygon
wsi_dir = DATA_DIR / "figure4_wsi"
risk_cmap = LinearSegmentedColormap.from_list(
"histagent_risk",
["#2178B5", "#F9BF59", "#FA681F", "#D62629", "#800080"],
)
def slide_bounds(info):
return (0, 0, info["slide_width"], info["slide_height"])
def show_image(ax, filename, bounds):
xmin, ymin, xmax, ymax = bounds
ax.imshow(
plt.imread(wsi_dir / filename),
extent=[xmin, xmax, ymax, ymin],
origin="upper",
)
ax.set_xlim(xmin, xmax)
ax.set_ylim(ymax, ymin)
ax.set_aspect("equal", adjustable="box")
ax.set_axis_off()
def score_raster(
frame, bounds, tile_size, width=900, smooth=False,
valid_mask=None, alpha=1.0,
):
normalized, tissue = agent.map_scores(
frame, bounds, tile_size, width=width, smooth=smooth
)
if valid_mask is not None:
if valid_mask.shape != tissue.shape:
raise ValueError(
f"Mask shape {valid_mask.shape} does not match "
f"score field {tissue.shape}"
)
tissue &= valid_mask
rgba = risk_cmap(normalized)
rgba[..., 3] = np.where(tissue, alpha, 0.0)
return rgba
def _raster_geometry(bounds, width=900):
xmin, ymin, xmax, ymax = bounds
height = max(1, round(width * (ymax - ymin) / (xmax - xmin)))
return int(width), int(height)
def region_raster(frame, bounds, width=900):
xmin, ymin, xmax, ymax = bounds
width, height = _raster_geometry(bounds, width)
x_index = np.clip(
((frame["x"].to_numpy() - xmin) / (xmax - xmin) * (width - 1)).astype(int),
0, width - 1,
)
y_index = np.clip(
((frame["y"].to_numpy() - ymin) / (ymax - ymin) * (height - 1)).astype(int),
0, height - 1,
)
rgba = np.zeros((height, width, 4), dtype=float)
for code, color in [
(-1, "#D9D9D9"),
(0, REGION_COLORS["Poor"]),
(1, REGION_COLORS["High"]),
]:
mask = np.zeros((height, width), dtype=np.uint8)
selected = frame["region_code"].to_numpy() == code
mask[y_index[selected], x_index[selected]] = 1
mask = maximum_filter(mask, size=3) > 0
rgba[mask] = to_rgba(color)
return rgba
def show_raster(ax, rgba, bounds, interpolation="nearest"):
xmin, ymin, xmax, ymax = bounds
ax.imshow(
rgba, extent=[xmin, xmax, ymax, ymin],
origin="upper", interpolation=interpolation,
)
ax.set_xlim(xmin, xmax)
ax.set_ylim(ymax, ymin)
ax.set_aspect("equal", adjustable="box")
ax.set_axis_off()
stad_cases = [case for case in clinical_meta["cases"] if case["cohort"] == "STAD"]
fig, axes = plt.subplots(
2, 4, figsize=(11.8, 5.75),
gridspec_kw={"width_ratios": [1.08, 1.08, 1.08, .82]},
constrained_layout=True,
)
column_titles = [
"Whole-slide image (STAD)",
"Region annotation",
"HistAgent subtype score",
"Score distribution by region",
]
for row_i, info in enumerate(stad_cases):
bounds = slide_bounds(info)
case_id = info["case"]
frame = tiles.query("cohort == 'STAD' and case == @case_id").copy()
annotated = frame.query("region_code >= 0").copy()
show_image(axes[row_i, 0], info["thumbnail"], bounds)
show_raster(axes[row_i, 1], region_raster(frame, bounds), bounds)
show_raster(
axes[row_i, 2],
score_raster(
frame, bounds, info["tile_size_level0_px"]
),
bounds,
interpolation="bilinear",
)
order = ["Poor", "High"]
point_sample = pd.concat([
part.sample(min(len(part), 48), random_state=11)
for _, part in annotated.groupby("region", sort=False)
])
sns.boxplot(
data=annotated, x="region", y="score", order=order, hue="region",
palette=REGION_COLORS, showfliers=False, width=.58,
linewidth=1.05, legend=False, ax=axes[row_i, 3],
)
sns.stripplot(
data=point_sample, x="region", y="score", order=order, hue="region",
palette=REGION_COLORS, size=2.3, alpha=.42,
jitter=.16, legend=False, ax=axes[row_i, 3],
)
poor = annotated.loc[annotated["region"] == "Poor", "score"].to_numpy()
high = annotated.loc[annotated["region"] == "High", "score"].to_numpy()
p_value = mannwhitneyu(poor, high, alternative="greater").pvalue
axes[row_i, 3].plot(
[0, 0, 1, 1], [1.00, 1.025, 1.025, 1.00],
color="black", linewidth=.9,
)
axes[row_i, 3].text(
.5, 1.035, "P<0.001" if p_value < .001 else f"P={p_value:.3f}",
ha="center", va="bottom", fontsize=8.5,
)
axes[row_i, 3].set_ylim(-.03, 1.085)
axes[row_i, 3].set_xlabel("")
axes[row_i, 3].set_ylabel("HistAgent subtype score", fontsize=9)
axes[row_i, 3].tick_params(labelsize=8.5, colors="black")
sns.despine(ax=axes[row_i, 3])
axes[row_i, 0].text(
-.035, .5, info["case"], transform=axes[row_i, 0].transAxes,
rotation=90, va="center", ha="right", fontsize=8.5,
)
if row_i == 0:
for ax, title in zip(axes[row_i], column_titles):
ax.set_title(title, pad=6, fontsize=10.2)
fig.legend(
handles=[
Patch(facecolor=REGION_COLORS["Poor"], label="Poor differentiation"),
Patch(facecolor=REGION_COLORS["High"], label="High differentiation"),
Patch(facecolor="#D9D9D9", label="Negative"),
],
loc="lower left", bbox_to_anchor=(.08, -.01), ncol=3,
frameon=False, fontsize=8.7,
)
fig.colorbar(
ScalarMappable(norm=Normalize(0, 1), cmap=risk_cmap),
ax=axes[:, 2].tolist(), orientation="horizontal",
shrink=.58, pad=.035, label="HistAgent subtype score",
ticks=[0, 1],
)
colorbar = fig.axes[-1]
colorbar.set_xticklabels(["Low", "High"])
plt.show()
brca_info = next(
case for case in clinical_meta["cases"] if case["cohort"] == "BRCA"
)
brca_frame = tiles.query("cohort == 'BRCA'").copy()
brca_annotated = brca_frame.query("region_code >= 0").copy()
full_bounds = slide_bounds(brca_info)
roi_bounds = tuple(brca_info["roi_bounds"][key] for key in [
"xmin", "ymin", "xmax", "ymax"
])
roi_frame = brca_frame.loc[
brca_frame["x"].between(roi_bounds[0], roi_bounds[2])
& brca_frame["y"].between(roi_bounds[1], roi_bounds[3])
].copy()
fig = plt.figure(figsize=(11.8, 6.25), constrained_layout=True)
grid = fig.add_gridspec(
2, 4, height_ratios=[1.04, 1],
width_ratios=[1, 1, 1, .86],
)
brca_axes = {
"wsi": fig.add_subplot(grid[0, :2]),
"wsi_score": fig.add_subplot(grid[0, 2:]),
"roi": fig.add_subplot(grid[1, 0]),
"roi_region": fig.add_subplot(grid[1, 1]),
"roi_score": fig.add_subplot(grid[1, 2]),
"distribution": fig.add_subplot(grid[1, 3]),
}
show_image(
brca_axes["wsi"], brca_info["thumbnail"], full_bounds
)
brca_axes["wsi"].set_title("Whole-slide image", pad=6, fontsize=10.2)
brca_axes["wsi"].add_patch(Rectangle(
(roi_bounds[0], roi_bounds[1]),
roi_bounds[2] - roi_bounds[0],
roi_bounds[3] - roi_bounds[1],
fill=False, edgecolor="#1B7C5C", linewidth=1.5,
))
show_raster(
brca_axes["wsi_score"],
score_raster(
brca_frame, full_bounds,
brca_info["tile_size_level0_px"],
width=1000, smooth=True,
),
full_bounds,
interpolation="bilinear",
)
brca_axes["wsi_score"].set_title(
"HistAgent OS risk score", pad=6, fontsize=10.2
)
brca_axes["wsi_score"].add_patch(Rectangle(
(roi_bounds[0], roi_bounds[1]),
roi_bounds[2] - roi_bounds[0],
roi_bounds[3] - roi_bounds[1],
fill=False, edgecolor="#1B7C5C", linewidth=1.5,
))
roi_image_array = plt.imread(wsi_dir / brca_info["roi_image"])
roi_annotation_array = plt.imread(
wsi_dir / brca_info["roi_annotation"]
)
roi_valid_mask = np.any(
roi_annotation_array[..., :3] < .98, axis=2
)
roi_image_masked = roi_image_array[..., :3].copy()
roi_image_masked[~roi_valid_mask] = .96
show_raster(
brca_axes["roi"], roi_image_masked, roi_bounds,
interpolation="nearest",
)
brca_axes["roi"].set_title("ROI", pad=6, fontsize=10.2)
show_image(
brca_axes["roi_region"], brca_info["roi_annotation"], roi_bounds
)
brca_axes["roi_region"].set_title("ROI annotation", pad=6, fontsize=10.2)
show_raster(
brca_axes["roi_score"],
score_raster(
roi_frame, roi_bounds, brca_info["tile_size_level0_px"],
width=roi_image_array.shape[1], smooth=True,
valid_mask=roi_valid_mask, alpha=.88,
),
roi_bounds,
interpolation="bilinear",
)
brca_axes["roi_score"].set_title("ROI risk score", pad=6, fontsize=10.2)
distribution_ax = brca_axes["distribution"]
order = ["Tumor", "Stroma"]
score_low, score_high = np.percentile(
brca_annotated["score"], [2, 98]
)
brca_annotated["display_score"] = np.clip(
(brca_annotated["score"] - score_low)
/ (score_high - score_low + 1e-9),
0, 1,
)
point_sample = pd.concat([
part.sample(min(len(part), 48), random_state=8)
for _, part in brca_annotated.groupby("region", sort=False)
])
sns.boxplot(
data=brca_annotated, x="region", y="display_score",
order=order, hue="region",
palette=REGION_COLORS, showfliers=False, width=.58,
linewidth=1.05, legend=False, ax=distribution_ax,
)
sns.stripplot(
data=point_sample, x="region", y="display_score",
order=order, hue="region",
palette=REGION_COLORS, size=2.5, alpha=.45, jitter=.16,
legend=False, ax=distribution_ax,
)
p_value = region_tests.query("cohort == 'BRCA'")["Mann–Whitney P"].iloc[0]
distribution_ax.set_title("Score distribution by region", pad=6, fontsize=10.2)
distribution_ax.set_xlabel("")
distribution_ax.set_ylabel("HistAgent OS risk score")
distribution_ax.plot(
[0, 0, 1, 1], [1.00, 1.025, 1.025, 1.00],
color="black", linewidth=.9,
)
distribution_ax.text(
.5, 1.035, "P<0.001" if p_value < .001 else f"P={p_value:.3f}",
ha="center", va="bottom", fontsize=8.5,
)
distribution_ax.set_ylim(-.03, 1.085)
distribution_ax.tick_params(labelsize=8.5, colors="black")
sns.despine(ax=distribution_ax)
fig.canvas.draw()
roi_wsi_points = [
brca_axes["wsi"].transData.transform(
(roi_bounds[0], roi_bounds[3])
),
brca_axes["wsi"].transData.transform(
(roi_bounds[2], roi_bounds[3])
),
]
roi_panel_points = [
brca_axes["roi"].transAxes.transform((0, 1)),
brca_axes["roi"].transAxes.transform((1, 1)),
]
connector_points = [
fig.transFigure.inverted().transform(point)
for point in roi_wsi_points + roi_panel_points[::-1]
]
fig.patches.append(Polygon(
connector_points,
transform=fig.transFigure,
facecolor="#D9E6E3",
edgecolor="none",
alpha=.72,
zorder=-1,
))
fig.legend(
handles=[
Patch(facecolor=REGION_COLORS["Tumor"], label="Tumor"),
Patch(facecolor=REGION_COLORS["Stroma"], label="Stroma"),
],
loc="lower left", bbox_to_anchor=(0.08, -0.008),
ncol=2, frameon=False, fontsize=8.7,
)
fig.colorbar(
ScalarMappable(
norm=Normalize(0, 1), cmap=risk_cmap
),
ax=[brca_axes["wsi_score"], brca_axes["roi_score"]],
location="bottom", shrink=.58, pad=.04,
label="HistAgent OS risk score",
ticks=[0, 1],
)
colorbar = fig.axes[-1]
colorbar.set_xticklabels(["Low", "High"])
plt.show()
Patient-level prognostic-risk stratification¶
Each cohort is split at its median out-of-fold risk. The code below calculates the Kaplan-Meier curves and log-rank p-values.
survival["cohort"] = survival["task"].str.replace("TCGA-", "", regex=False)
survival["cohort"] = survival["cohort"].str.replace("__OS", "", regex=False)
survival["risk_group"] = survival.groupby("cohort")["risk"].transform(
lambda x: np.where(x >= x.median(), "High risk", "Low risk")
)
cohort_order = ["LIHC", "LGG"]
time_ticks = {
"LIHC": np.array([0, 25, 50, 75, 100]),
"LGG": np.array([0, 50, 100, 150, 200]),
}
cox_rows = reported.query("analysis == 'Cox'").copy()
fig = plt.figure(figsize=(12.2, 5.55), facecolor="white")
outer = fig.add_gridspec(
1, 2, left=.075, right=.925, top=.94, bottom=.10, wspace=.42
)
km_results = []
for column_index, cohort in enumerate(cohort_order):
frame = survival.query("cohort == @cohort").copy()
subgrid = outer[column_index].subgridspec(
3, 1, height_ratios=[3.35, .66, 1.18], hspace=.08
)
ax = fig.add_subplot(subgrid[0])
risk_ax = fig.add_subplot(subgrid[1], sharex=ax)
forest_ax = fig.add_subplot(subgrid[2])
for group in ["High risk", "Low risk"]:
color = SURVIVAL_COLORS[group]
part = frame.query("risk_group == @group")
x, y, low, high = agent.kaplan_meier(
part["time"], part["event"]
)
ax.fill_between(
x, low, high, step="post", color=color, alpha=.16, linewidth=0
)
ax.step(x, y, where="post", label=group,
color=color, linewidth=2.2)
p = agent.logrank_p(
frame["time"], frame["event"],
frame["risk_group"].eq("High risk"),
)
c_index = float(
reported.query(
"cohort == @cohort and analysis == 'Kaplan–Meier' "
"and quantity_or_covariate == 'C-index'"
)["estimate"].iloc[0]
)
km_results.append({
"Cohort": cohort, "C-index": c_index, "Log-rank P": p
})
ax.set_title(f"TCGA-{cohort} OS")
ax.set_ylabel(
"Overall survival probability" if column_index == 0 else ""
)
ax.set_ylim(0, 1.02)
ax.set_xlim(0, time_ticks[cohort][-1])
ax.set_xticks(time_ticks[cohort])
p_label = "P < 0.001" if p < .001 else f"P = {p:.3f}"
ax.text(
.04, .08, f"{p_label}\nC-index = {c_index:.3f}",
transform=ax.transAxes,
)
ax.legend(frameon=False, loc="upper right")
sns.despine(ax=ax)
risk_ax.set_ylim(0, 1)
risk_ax.set_axis_off()
risk_ax.text(
-.02, .73, "No. at risk", transform=risk_ax.transAxes,
ha="right", va="center", fontsize=8.5,
)
group_rows = [("High risk", .43), ("Low risk", .09)]
for group, y_position in group_rows:
color = SURVIVAL_COLORS[group]
group_mask = frame["risk_group"].eq(group).to_numpy()
risk_ax.text(
-.06, y_position, group, transform=risk_ax.transAxes,
ha="right", va="center", fontsize=8.3, color=color,
)
for tick in time_ticks[cohort]:
count = int(
((frame["time"].to_numpy() >= tick) & group_mask).sum()
)
risk_ax.text(
tick, y_position, str(count),
ha="center", va="center", fontsize=8.3, color=color,
)
risk_ax.axhline(.66, color="#D0D0D0", linewidth=.8)
cohort_forest = cox_rows.query("cohort == @cohort").reset_index(drop=True)
forest_ax.axvline(1, color="#888888", linestyle="--", linewidth=.9)
y_positions = [1, 0]
for y_position, row in zip(y_positions, cohort_forest.itertuples()):
is_histagent = str(row.quantity_or_covariate).startswith("HistAgent")
color = "#2F67B1" if is_histagent else "#626B73"
forest_ax.errorbar(
row.hazard_ratio, y_position,
xerr=[[row.hazard_ratio - row.ci_low],
[row.ci_high - row.hazard_ratio]],
fmt="o", color=color, ecolor=color, capsize=2.5,
markersize=5.5, linewidth=1.5,
)
label = (
"HistAgent risk"
if is_histagent else str(row.quantity_or_covariate)
)
forest_ax.text(
.47, y_position, label,
ha="left", va="center", fontsize=8.2,
)
forest_ax.text(
1.02, y_position,
f"{row.hazard_ratio:.2f} [{row.ci_low:.2f}–{row.ci_high:.2f}]",
transform=forest_ax.get_yaxis_transform(),
ha="left", va="center", fontsize=7.6, color=color,
)
forest_ax.set_xscale("log")
forest_ax.set_xlim(.45, 4.1)
forest_ax.set_xticks([.5, 1, 2, 4], labels=["0.5", "1", "2", "4"])
forest_ax.set_ylim(-.65, 1.65)
forest_ax.set_yticks([])
forest_ax.set_xlabel("Hazard ratio")
forest_ax.minorticks_off()
sns.despine(ax=forest_ax, left=True)
plt.show()
pd.DataFrame(km_results).round(3)
Multivariable prognostic analysis¶
The forest plot uses the reported Cox model estimates. HistAgent risk is entered per standard deviation together with the cohort-specific clinical covariate.
forest_table = reported.query("analysis == 'Cox'").rename(columns={
"cohort": "Cohort",
"quantity_or_covariate": "Covariate",
"hazard_ratio": "Hazard ratio",
}).copy()
forest_table["95% CI"] = forest_table.apply(
lambda row: f"{row['ci_low']:.2f}–{row['ci_high']:.2f}", axis=1
)
forest_table[["Cohort", "Covariate", "Hazard ratio", "95% CI"]]
Verify the calculations¶
assert len(clinical_meta["cases"]) == 3
for info in clinical_meta["cases"]:
checkpoint_files = (
info["checkpoints"]
if "checkpoints" in info
else [info["checkpoint"]]
)
assert all((DATA_DIR / path).exists() for path in checkpoint_files)
with np.load(DATA_DIR / info["embedding_file"]) as case_arrays:
assert (
len(case_arrays["embeddings"])
== len(case_arrays["coords"])
== len(case_arrays["regions"])
)
assert len(case_arrays["embeddings"]) > 70_000
assert not survival["case_id"].duplicated().any()
assert set(survival["cohort"]) == {"LIHC", "LGG"}
assert all((wsi_dir / info["thumbnail"]).exists() for info in clinical_meta["cases"])
assert (wsi_dir / brca_info["roi_image"]).exists()
assert (wsi_dir / brca_info["roi_annotation"]).exists()
reported_n = (
reported.query("analysis == 'Kaplan–Meier' and quantity_or_covariate == 'patients'")
.set_index("cohort")["estimate"].astype(int).to_dict()
)
for cohort, frame in survival.groupby("cohort"):
assert len(frame) == reported_n[cohort]
assert frame["risk_group"].value_counts().nunique() == 1
assert reported_n == {"LIHC": 356, "LGG": 486}
assert len(region_tests) == 3
assert np.isfinite(region_tests["Mann–Whitney P"]).all()
assert tiles.groupby("case").size().min() > 70_000
print("Checks passed for full-slide ABMIL inference, three region contrasts and two patient cohorts.")
Continue¶
Continue to ST atlas retrieval to visualize the spatial transcriptomics atlas and run natural-language and H&E image queries.
