Run standard spatial transcriptomic analyses¶
Evaluate molecular recovery across 135 held-out ST slides, run five standard downstream analyses and inspect representative spatial readouts.
Installation¶
Create a Python 3.10+ environment, install the public HistAgent package and add the lightweight analysis dependencies used by these notebooks.
git clone https://github.com/zipging/HistAgent.git
cd HistAgent
python -m venv .venv
source .venv/bin/activate
python -m pip install -e .
python -m pip install jupyter numpy pandas matplotlib seaborn scipy scikit-learn torch huggingface-hub
If data/ is absent, the notebook downloads its data from
wli13/HistAgent-data. These examples run without a GPU. Running HistAgent on
new images requires access to the gated Prov-GigaPath model and an authenticated
Hugging Face session.
Setup¶
Import the analysis packages, locate the tutorial data and set the plotting style.
from pathlib import Path
import json
import os
import numpy as np
import pandas as pd
import matplotlib.pyplot as plt
import seaborn as sns
configured_data = os.getenv("HISTAGENT_TUTORIAL_DATA", "").strip()
DATA_DIR = Path(configured_data).expanduser() if configured_data else Path("data")
if not DATA_DIR.exists():
from huggingface_hub import snapshot_download
snapshot = Path(
snapshot_download(
"wli13/HistAgent-data",
repo_type="dataset",
allow_patterns=["tutorials/**", "manifest.json"],
)
)
DATA_DIR = snapshot / "tutorials"
assert DATA_DIR.exists(), f"Tutorial data not found: {DATA_DIR}"
def rankridge_pack_root(groups):
configured = os.getenv("HISTAGENT_RANKRIDGE_PACKS", "").strip()
if configured:
root = Path(configured).expanduser()
if not (root / groups[0]).exists():
root = root / "rankridge_tutorial_packs"
assert (root / groups[0]).exists(), f"RankRidge pack not found: {root}"
return root
from huggingface_hub import snapshot_download
snapshot = Path(
snapshot_download(
"wli13/HistAgent-data",
repo_type="dataset",
allow_patterns=[
f"rankridge_tutorial_packs/{group}/**" for group in groups
],
)
)
return snapshot / "rankridge_tutorial_packs"
sns.set_theme(style="white", context="talk")
plt.rcParams.update({
"figure.dpi": 135,
"figure.facecolor": "white",
"axes.facecolor": "white",
"axes.spines.top": False,
"axes.spines.right": False,
"axes.edgecolor": "#000000",
"axes.labelcolor": "#000000",
"axes.linewidth": 1.25,
"axes.grid": False,
"xtick.color": "#000000",
"ytick.color": "#000000",
"text.color": "#000000",
"font.size": 10,
"axes.titlesize": 12,
"axes.labelsize": 10.5,
"xtick.labelsize": 9,
"ytick.labelsize": 9,
"legend.fontsize": 9,
"figure.titlesize": 12,
})
COLORS = {
"HistAgent": "#168267",
"Measured ST": "#6f7477",
"STPath": "#cb77a0",
"OmiCLIP": "#69aec7",
}
SURVIVAL_COLORS = {"High risk": "#ef4545", "Low risk": "#45b3c2"}
REGION_COLORS = {
"Poor": "#d85f6b",
"High": "#79a9d1",
"Negative": "#b7b7b7",
"Tumor": "#e32925",
"Stroma": "#62acec",
}
TASK_CMAPS = {
"svg": "YlGnBu",
"domain": "tab10",
"deconv": "Greens",
"deg": "Purples",
"pathway": "PuBuGn",
}
Overview¶
The benchmark covers five standard ST analyses across 135 held-out slides. The examples pair measured ST with HistAgent fields.
from scipy.stats import spearmanr
from sklearn.metrics import adjusted_rand_score, normalized_mutual_info_score
rank = pd.read_json(DATA_DIR / "fig3b.json")
tasks = pd.read_json(DATA_DIR / "fig3c.json")
arrays = np.load(DATA_DIR / "figure3_examples.npz")
meta = json.loads((DATA_DIR / "figure3_examples.json").read_text())
task_cols = ["svg", "domain_ari", "domain_nmi", "deconv", "deg", "pathway"]
tasks[task_cols] = tasks[task_cols].apply(pd.to_numeric, errors="coerce")
print(f"Sections in ranking benchmark: {rank['section'].nunique()}")
print(f"Species: {', '.join(sorted(rank['species'].unique()))}")
print(f"Organs: {rank['organ'].nunique()}")
Spot-level gene-ranking recovery¶
The benchmark reports HitRate@50 and mAP@50 for each section. The table below recomputes method-level summaries from the 405 section and method rows.
rank_display = rank.rename(columns={
"hit_rate_top50": "HitRate@50",
"ap_top50": "mAP@50",
})
rank_summary = (
rank_display.groupby("method")[["HitRate@50", "mAP@50"]]
.agg(["mean", "median"])
.sort_values(("mAP@50", "mean"), ascending=False)
)
rank_summary.round(3)
rank_long = rank_display.melt(
id_vars=["section", "species", "organ", "method"],
value_vars=["HitRate@50", "mAP@50"],
var_name="metric", value_name="score"
)

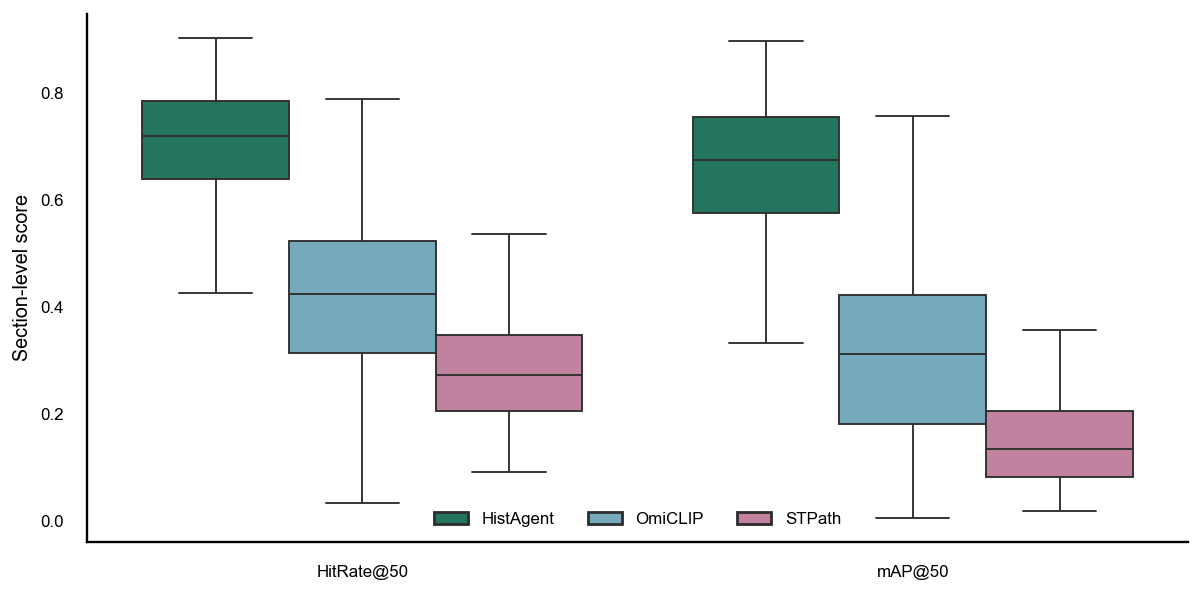

plt.figure(figsize=(9, 4.5))
sns.boxplot(data=rank_long, x="metric", y="score", hue="method",
palette=COLORS, showfliers=False)
plt.xlabel("")
plt.ylabel("Section-level score")
plt.legend(title="", frameon=False, ncol=3)
plt.tight_layout()
plt.show()
Five standard spatial transcriptomic analyses¶
The paper reports six metrics across five analyses: spatially variable genes, spatial domains, cell-type deconvolution, differential expression and pathway enrichment. Four slides are then used to show representative spatial outputs.
task_labels = {
"svg": "Moran's I Spearman",
"domain_ari": "Domain ARI",
"domain_nmi": "Domain NMI",
"deconv": "Spot Spearman",
"deg": "DE Spearman",
"pathway": "nDCG",
}
task_summary = (
tasks.groupby("method")[task_cols]
.mean()
.rename(columns=task_labels)
.sort_values("nDCG", ascending=False)
)
task_summary.round(3)
task_long = tasks.melt(
id_vars=["section", "species", "organ", "method"],
value_vars=task_cols,
var_name="task",
value_name="value",
)
task_long["task"] = task_long["task"].map(task_labels)

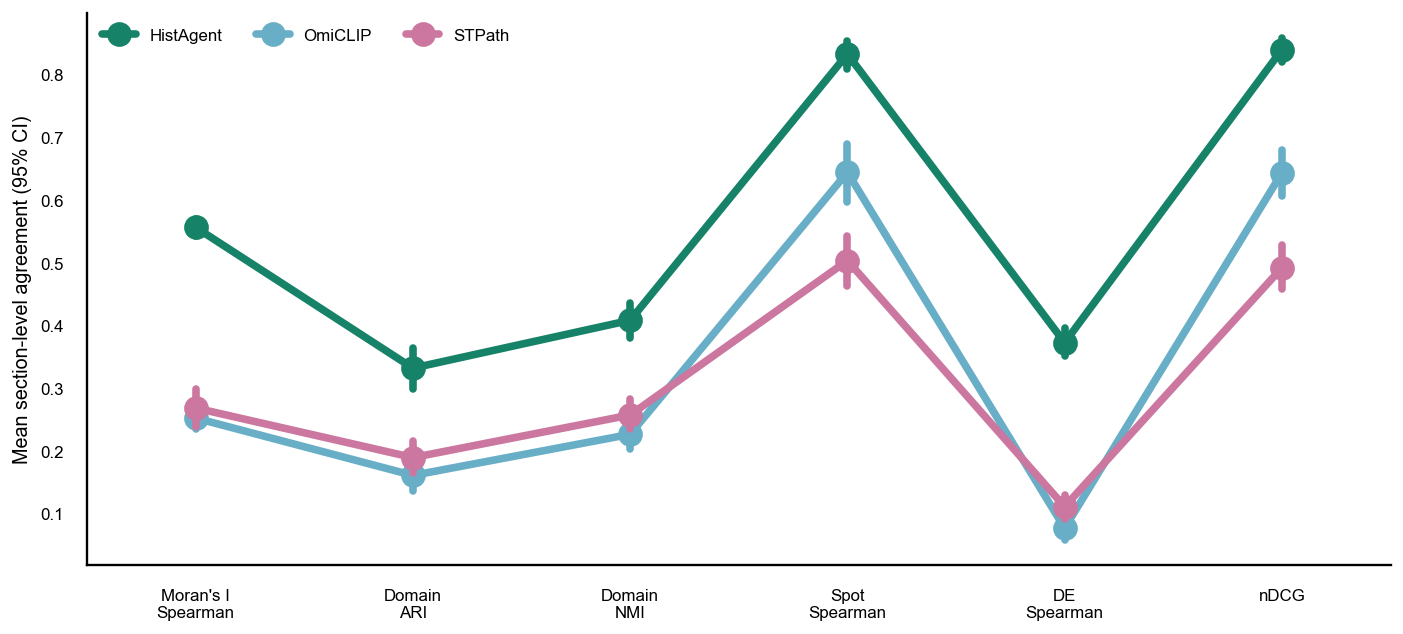

plt.figure(figsize=(10.5, 4.8))
sns.pointplot(
data=task_long, x="task", y="value", hue="method",
palette=COLORS, estimator="mean", errorbar=("ci", 95),
seed=17, markers="o",
)
plt.xlabel("")
plt.ylabel("Mean section-level agreement (95% CI)")
plt.xticks(
ticks=range(6),
labels=[
"Moran's I\nSpearman", "Domain\nARI", "Domain\nNMI",
"Spot\nSpearman", "DE\nSpearman", "nDCG",
],
)
plt.legend(title="", frameon=False, ncol=3)
plt.tight_layout()
plt.show()
Calculate representative spatial readouts¶
Continuous tasks use Spearman correlation. Domain recovery uses ARI and NMI. The calculations below run on the spot-level arrays before anything is plotted.
records = []
for row in meta["rows"]:
section = row["section"]
for task in meta["task_order"]:
measured = arrays[f"{section}__{task}__measured"]
predicted = arrays[f"{section}__{task}__predicted"]
if task == "domain":
records.append({
"section": section, "tissue": row["organ"], "task": task,
"feature": "domain labels",
"score": adjusted_rand_score(measured, predicted),
"secondary": normalized_mutual_info_score(measured, predicted),
"metric": "ARI / NMI",
})
else:
records.append({
"section": section, "tissue": row["organ"], "task": task,
"feature": row["features"][task],
"score": spearmanr(measured, predicted, nan_policy="omit").statistic,
"secondary": np.nan,
"metric": "Spearman rho",
})
example_scores = pd.DataFrame(records)
Representative outputs across five ST analyses¶
For each analysis, the measured ST result is shown beside the result calculated from the HistAgent-inferred molecular profile.
from matplotlib.colorbar import ColorbarBase
from matplotlib.colors import ListedColormap, LinearSegmentedColormap, Normalize
from matplotlib.patches import Rectangle
task_order = meta["task_order"]
task_titles = {
"svg": "SVG",
"domain": "Domain",
"deconv": "Deconvolution",
"deg": "DEG",
"pathway": "Pathway",
}
task_colors = {
"svg": "#82462F",
"domain": "#D37A3B",
"deconv": "#5C9A58",
"deg": "#665895",
"pathway": "#43847B",
}
species_colors = {"human": "#365F85", "mouse": "#9A4D3F"}
domain_colors = list(plt.get_cmap("tab20").colors[:7])
domain_cmap = ListedColormap(domain_colors)
def percentile_display(values):
values = np.asarray(values, dtype=float)
finite = np.isfinite(values)
if not finite.any() or np.nanstd(values) <= 1e-12:
return np.zeros_like(values)
low, high = np.nanpercentile(values, [2, 98])
if high <= low:
low, high = np.nanmin(values), np.nanmax(values)
return np.clip((values - low) / (high - low), 0, 1)
def light_tinted_cmap(name, amount=.12):
colors = plt.get_cmap(name)(np.linspace(0, 1, 256))
colors[:, :3] = amount + (1 - amount) * colors[:, :3]
return LinearSegmentedColormap.from_list(f"{name}_paper", colors)
task_cmaps = {
"svg": light_tinted_cmap("YlGnBu"),
"deconv": light_tinted_cmap("Greens"),
"deg": light_tinted_cmap("Purples", .13),
"pathway": light_tinted_cmap("PuBuGn"),
}
def plot_spatial_field(ax, coords, values, task):
x, y = coords[:, 0], coords[:, 1]
x_pad = max((x.max() - x.min()) * .025, 1)
y_pad = max((y.max() - y.min()) * .025, 1)
ax.scatter(
x, y, c=values, s=4.2,
cmap=domain_cmap if task == "domain" else task_cmaps[task],
vmin=-.5 if task == "domain" else 0,
vmax=6.5 if task == "domain" else 1,
marker="o", linewidths=0, rasterized=True,
)
ax.set_xlim(x.min() - x_pad, x.max() + x_pad)
ax.set_ylim(y.max() + y_pad, y.min() - y_pad)
ax.set_aspect("equal", adjustable="box")
ax.set_axis_off()

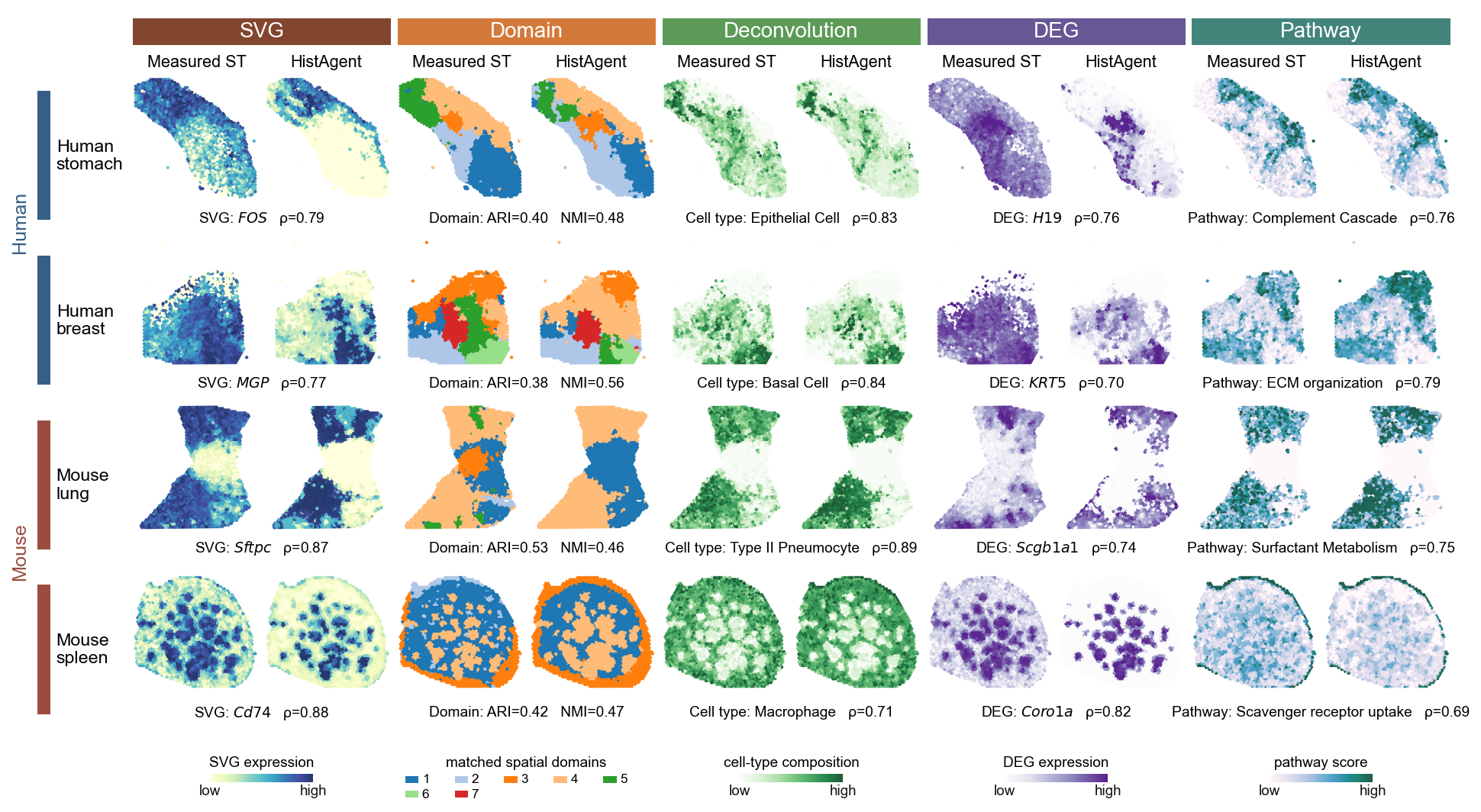

fig = plt.figure(figsize=(13.2, 7.3), dpi=150, facecolor="white")
grid = fig.add_gridspec(
nrows=1 + 2 * len(meta["rows"]) + 1,
ncols=11,
width_ratios=[0.78] + [1, 1] * 5,
height_ratios=[.48] + [1, .25] * len(meta["rows"]) + [.28],
left=.052, right=.993, top=.962, bottom=.055,
wspace=.055, hspace=.045,
)
header_axes = {}
for task_i, task in enumerate(task_order):
header = fig.add_subplot(grid[0, 1 + 2 * task_i:3 + 2 * task_i])
header_axes[task] = header
header.set_axis_off()
header.add_patch(Rectangle(
(0, .44), 1, .44, transform=header.transAxes,
facecolor=task_colors[task], edgecolor="none",
))
header.text(.5, .66, task_titles[task], color="white",
ha="center", va="center", fontsize=13.4)
header.text(.25, .16, "Measured ST", ha="center", va="center", fontsize=10.4)
header.text(.75, .16, "HistAgent", ha="center", va="center", fontsize=10.4)
scores_by_section = example_scores.set_index(["section", "task"])
for row_i, row in enumerate(meta["rows"]):
map_row = 1 + 2 * row_i
note_row = map_row + 1
section = row["section"]
xy = arrays[f"{section}__coords"]
tissue_ax = fig.add_subplot(grid[map_row:note_row + 1, 0])
tissue_ax.set_axis_off()
species_color = species_colors[row["species"]]
tissue_ax.add_patch(Rectangle(
(.10, .10), .13, .80, transform=tissue_ax.transAxes,
facecolor=species_color, edgecolor="none",
))
tissue_ax.text(.29, .5, f"{row['species'].title()}\n{row['organ']}",
ha="left", va="center", fontsize=11.2)
for task_i, task in enumerate(task_order):
feature = row["features"][task]
for side, source in enumerate(["measured", "predicted"]):
values = arrays[f"{section}__{task}__{source}"]
display_values = (
values if task == "domain" else percentile_display(values)
)
ax = fig.add_subplot(grid[map_row, 1 + 2 * task_i + side])
plot_spatial_field(ax, xy, display_values, task)
score = scores_by_section.loc[(section, task)]
if task == "domain":
note = (
f"Domain: ARI={score['score']:.2f} "
f"NMI={score['secondary']:.2f}"
)
else:
feature_label = (
rf"$\mathit{{{feature}}}$"
if task in {"svg", "deg"} else feature
)
prefix = {
"svg": "SVG",
"deconv": "Cell type",
"deg": "DEG",
"pathway": "Pathway",
}[task]
note = f"{prefix}: {feature_label} ρ={score['score']:.2f}"
note_ax = fig.add_subplot(
grid[note_row, 1 + 2 * task_i:3 + 2 * task_i]
)
note_ax.set_axis_off()
note_ax.text(.5, .56, note, ha="center", va="center", fontsize=9.2)
fig.text(.047, .710, "Human", rotation=90, ha="center", va="center",
fontsize=12.1, color=species_colors["human"])
fig.text(.047, .315, "Mouse", rotation=90, ha="center", va="center",
fontsize=12.1, color=species_colors["mouse"])
legend_labels = {
"svg": "SVG expression",
"deconv": "cell-type composition",
"deg": "DEG expression",
"pathway": "pathway score",
}
for task, header in header_axes.items():
position = header.get_position()
if task == "domain":
fig.text(
position.x0 + .5 * position.width, .054,
"matched spatial domains", ha="center", va="bottom", fontsize=9.1,
)
legend_ax = fig.add_axes([
position.x0 + .02 * position.width, .017,
.96 * position.width, .038,
])
legend_ax.set_axis_off()
for index, color in enumerate(domain_colors):
col = index % 5
row = index // 5
x = .01 + col * .20
y = .10 + (1 - row) * .46
legend_ax.add_patch(Rectangle(
(x, y), .055, .22, facecolor=color, edgecolor="none"
))
legend_ax.text(x + .068, y + .11, str(index + 1),
ha="left", va="center", fontsize=8.3)
continue
fig.text(
position.x0 + .5 * position.width, .054,
legend_labels[task], ha="center", va="bottom", fontsize=9.1,
)
color_ax = fig.add_axes([
position.x0 + .30 * position.width, .039,
.40 * position.width, .010,
])
colorbar = ColorbarBase(
color_ax, cmap=task_cmaps[task], norm=Normalize(0, 1),
orientation="horizontal",
)
colorbar.outline.set_visible(False)
colorbar.set_ticks([0, 1])
colorbar.set_ticklabels(["low", "high"])
colorbar.ax.tick_params(labelsize=9, length=0, pad=1, colors="#111111")
plt.show()
Spatial-readout agreement¶
The table reports the task-specific score for every example above.
display_table = example_scores.copy()
display_table["display"] = display_table.apply(
lambda r: (
f"ARI {r['score']:.2f}; NMI {r['secondary']:.2f}"
if r["task"] == "domain"
else f"rho {r['score']:.2f}"
), axis=1
)
display_table.pivot(index="tissue", columns="task", values="display")[
task_order
].rename(columns={
"svg": "SVG",
"domain": "Spatial domain",
"deconv": "Deconvolution",
"deg": "Differential expression",
"pathway": "Pathway enrichment",
})
Verify the calculations¶
assert rank["section"].nunique() == 135
assert tasks["section"].nunique() == 135
assert len(example_scores) == 4 * len(task_order)
assert np.isfinite(example_scores["score"]).all()
assert all(
len(arrays[f"{row['section']}__coords"])
== len(arrays[f"{row['section']}__{task}__measured"])
== len(arrays[f"{row['section']}__{task}__predicted"])
for row in meta["rows"] for task in task_order
)
print("Checks passed for 135 sections and all 20 representative task fields.")
Continue¶
Continue to Clinical prediction to inspect pretrained visual-omics representations, spatial slide-level predictions and patient-level prognostic risk.
