Generate and evaluate ranked molecular readouts¶
Evaluate spot-level gene-ranking recovery and gene-level spatial recovery on five held-out spatial transcriptomics slides.
Installation¶
Create a Python 3.10+ environment, install the public HistAgent package and add the lightweight analysis dependencies used by these notebooks.
git clone https://github.com/zipging/HistAgent.git
cd HistAgent
python -m venv .venv
source .venv/bin/activate
python -m pip install -e .
python -m pip install jupyter numpy pandas matplotlib seaborn scipy scikit-learn torch huggingface-hub
If data/ is absent, the notebook downloads its data from
wli13/HistAgent-data. These examples run without a GPU. Running HistAgent on
new images requires access to the gated Prov-GigaPath model and an authenticated
Hugging Face session.
Setup¶
Import the analysis packages, locate the tutorial data and set the plotting style.
from pathlib import Path
import json
import os
import numpy as np
import pandas as pd
import matplotlib.pyplot as plt
import seaborn as sns
configured_data = os.getenv("HISTAGENT_TUTORIAL_DATA", "").strip()
DATA_DIR = Path(configured_data).expanduser() if configured_data else Path("data")
if not DATA_DIR.exists():
from huggingface_hub import snapshot_download
snapshot = Path(
snapshot_download(
"wli13/HistAgent-data",
repo_type="dataset",
allow_patterns=["tutorials/**", "manifest.json"],
)
)
DATA_DIR = snapshot / "tutorials"
assert DATA_DIR.exists(), f"Tutorial data not found: {DATA_DIR}"
def rankridge_pack_root(groups):
configured = os.getenv("HISTAGENT_RANKRIDGE_PACKS", "").strip()
if configured:
root = Path(configured).expanduser()
if not (root / groups[0]).exists():
root = root / "rankridge_tutorial_packs"
assert (root / groups[0]).exists(), f"RankRidge pack not found: {root}"
return root
from huggingface_hub import snapshot_download
snapshot = Path(
snapshot_download(
"wli13/HistAgent-data",
repo_type="dataset",
allow_patterns=[
f"rankridge_tutorial_packs/{group}/**" for group in groups
],
)
)
return snapshot / "rankridge_tutorial_packs"
sns.set_theme(style="white", context="talk")
plt.rcParams.update({
"figure.dpi": 135,
"figure.facecolor": "white",
"axes.facecolor": "white",
"axes.spines.top": False,
"axes.spines.right": False,
"axes.edgecolor": "#000000",
"axes.labelcolor": "#000000",
"axes.linewidth": 1.25,
"axes.grid": False,
"xtick.color": "#000000",
"ytick.color": "#000000",
"text.color": "#000000",
"font.size": 10,
"axes.titlesize": 12,
"axes.labelsize": 10.5,
"xtick.labelsize": 9,
"ytick.labelsize": 9,
"legend.fontsize": 9,
"figure.titlesize": 12,
})
COLORS = {
"HistAgent": "#168267",
"Measured ST": "#6f7477",
"STPath": "#cb77a0",
"OmiCLIP": "#69aec7",
}
SURVIVAL_COLORS = {"High risk": "#ef4545", "Low risk": "#45b3c2"}
REGION_COLORS = {
"Poor": "#d85f6b",
"High": "#79a9d1",
"Negative": "#b7b7b7",
"Tumor": "#e32925",
"Stroma": "#62acec",
}
TASK_CMAPS = {
"svg": "YlGnBu",
"domain": "tab10",
"deconv": "Greens",
"deg": "Purples",
"pathway": "PuBuGn",
}
Overview¶
Five held-out slides cover human and mouse stomach, breast, lung, spleen and kidney tissue. HitRate@50 and mAP@50 use every evaluated spot. The spatial maps show one representative gene per slide, with PCC reported for the displayed measured and predicted fields.
rank = pd.read_csv(DATA_DIR / "figure3b_rank_metrics_per_section.csv")
maps = np.load(DATA_DIR / "quickstart_expression_maps.npz")
meta = json.loads((DATA_DIR / "quickstart_expression_maps.json").read_text())
selected = list(meta["sections"])
section_groups = {
"GSE251950_GSM7990478": "human__stomach",
"GSE213688_GSM6592052": "human__breast",
"GSE202322_GSM6108350": "mouse__lung",
"GSE254652_GSM8047883": "mouse__spleen",
"GSE175540_GSM5924038": "human__kidney",
}
PACK_DIR = rankridge_pack_root(list(section_groups.values()))
from scipy import sparse
from scipy.spatial import cKDTree
def spatial_graph(coords, neighbors=6):
coords = np.asarray(coords, dtype=float)
k = min(neighbors, len(coords) - 1)
_, indices = cKDTree(coords).query(coords, k=k + 1)
rows = np.repeat(np.arange(len(coords)), k)
columns = indices[:, 1:].reshape(-1)
graph = sparse.csr_matrix(
(np.ones(len(rows), dtype=np.float32), (rows, columns)),
shape=(len(coords), len(coords)),
)
graph = graph.maximum(graph.T).tocsr()
degree = np.asarray(graph.sum(axis=1)).ravel()
inverse = np.divide(
1.0, degree, out=np.zeros_like(degree), where=degree > 0
)
return (sparse.diags(inverse) @ graph).tocsr()
inferred_maps = {}
spatial_pcc = {}
for section in selected:
pack = PACK_DIR / section_groups[section]
x_query = sparse.load_npz(pack / "query_rank_features.npz").tocsr()
coefficients = np.load(pack / "ridge_coefficients.npy")
target_genes = (pack / "target_genes.txt").read_text().splitlines()
feature_genes = (pack / "feature_genes.txt").read_text().splitlines()
manifest = json.loads((pack / "pack_manifest.json").read_text())
gene = meta["sections"][section]["gene"].upper()
target_index = {g.upper(): i for i, g in enumerate(target_genes)}[gene]
feature_index = {g.upper(): i for i, g in enumerate(feature_genes)}[gene]
inferred = np.asarray(x_query @ coefficients)[:, target_index]
if manifest["output_transform"] == "clip":
inferred = np.maximum(inferred, 0)
# The downstream maps retain inferred amplitude where the gene occurs in
# the generated top 50, then apply the paper's six-neighbor smoothing.
support = np.asarray(x_query[:, feature_index].toarray()).ravel() > 0
inferred = inferred * support
graph = spatial_graph(maps[f"{section}__coords"])
inferred = (0.75 * inferred + 0.25 * (graph @ inferred)).astype(np.float32)
measured = maps[f"{section}__measured"]
assert len(inferred) == len(measured)
inferred_maps[section] = inferred
spatial_pcc[section] = float(np.corrcoef(measured, inferred)[0, 1])
rank5 = rank.query("section in @selected and method == 'HistAgent'").copy()
summary = rank5.copy()
summary["tissue"] = summary["section"].map(
lambda s: f"{meta['sections'][s]['species']} {meta['sections'][s]['organ']}"
)
summary["PCC"] = summary["section"].map(
spatial_pcc
)
summary = summary.rename(columns={
"hit_rate_top50": "HitRate@50",
"ap_top50": "mAP@50",
})
summary[
["section", "tissue", "HitRate@50", "mAP@50", "PCC"]
].round(3)
Spot-level gene-ranking recovery¶
HitRate@50 is the fraction of measured top-50 genes recovered by the predicted top 50. Average precision also rewards correct genes that appear earlier in the prediction.
example_section = selected[0]
example = meta["rank_examples"][example_section]
truth = set(example["measured_top50"])
predicted = example["predicted_top50"]
hits = np.array([gene in truth for gene in predicted], dtype=float)
hit_rate = hits.sum() / 50
ap_at_50 = sum(
hits[i] * hits[: i + 1].mean() for i in range(len(hits))
) / 50
check = pd.DataFrame({
"rank": np.arange(1, 11),
"predicted_gene": predicted[:10],
"present_in_measured_top50": hits[:10].astype(bool),
})
print(f"Section: {example_section}")
print(f"Spot: {example['barcode']}")
print(f"Recalculated HitRate@50: {hit_rate:.3f}")
print(f"Recalculated AP@50: {ap_at_50:.3f}")
check

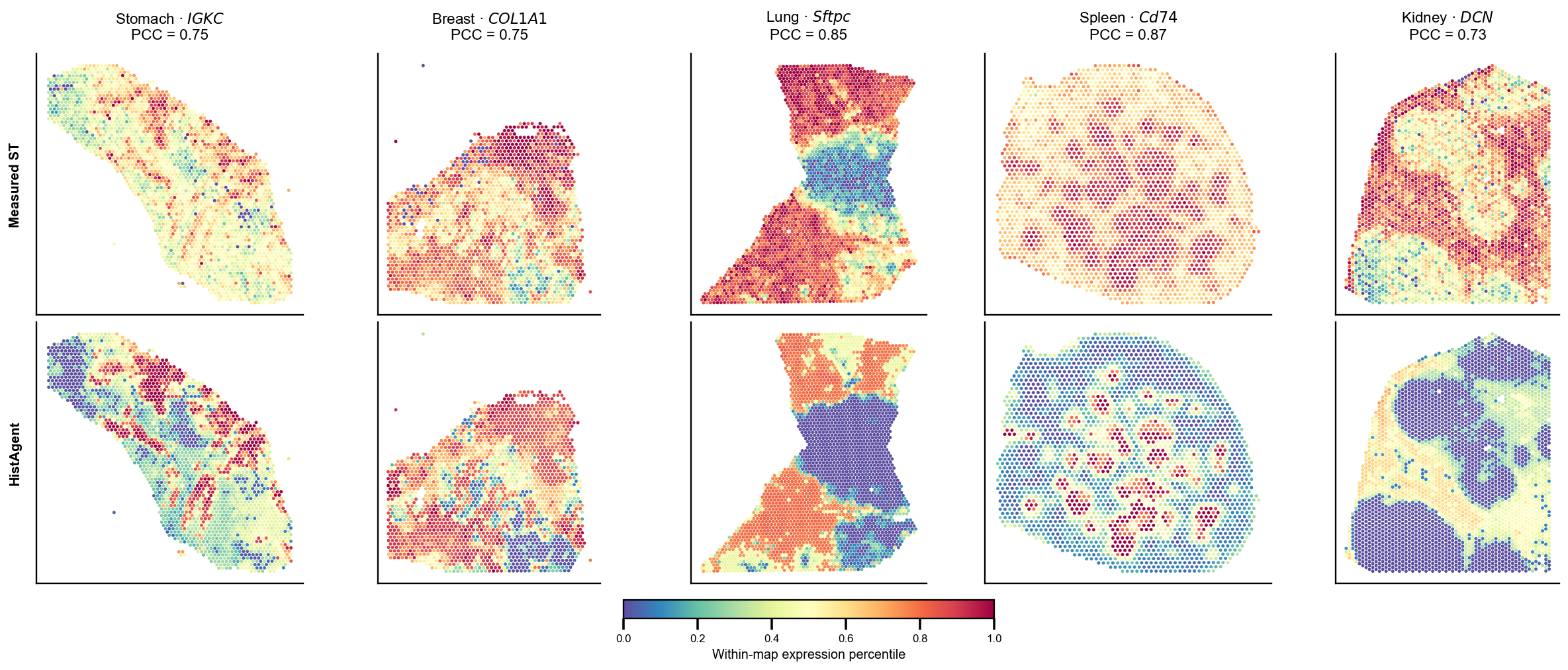

Gene-level spatial recovery¶
HistAgent directly generates a top-50 gene ranking, not a continuous expression matrix. The code above downloads compact reference-derived mappers and evaluates the held-out rank-feature matrices with X_query @ coefficients. The displayed fields then use the same top-50 support and spatial smoothing as the downstream analysis.
Each gene pair shares its 2nd-98th percentile color scale, and PCC is calculated from the unscaled spot values produced in this notebook.
fig, axes = plt.subplots(
2, len(selected), figsize=(18, 7.4), constrained_layout=True
)
for col, section in enumerate(selected):
info = meta["sections"][section]
xy = maps[f"{section}__coords"]
measured = maps[f"{section}__measured"]
predicted = inferred_maps[section]
lo, hi = np.nanpercentile(np.r_[measured, predicted], [2, 98])
scale = max(hi - lo, np.finfo(float).eps)
for row, (label, values) in enumerate([
("Measured ST", measured), ("HistAgent", predicted)
]):
ax = axes[row, col]
normalized = np.clip((values - lo) / scale, 0, 1)
sc = ax.scatter(
xy[:, 0], xy[:, 1], c=normalized, s=7, cmap="Spectral_r",
vmin=0, vmax=1, linewidths=0
)
ax.set_aspect("equal")
ax.invert_yaxis()
ax.set_xticks([])
ax.set_yticks([])
if row == 0:
gene_label = info["gene"].replace("-", r"{-}")
ax.set_title(
f"{info['organ'].title()} · "
+ rf"$\mathit{{{gene_label}}}$"
+ f"\nPCC = {spatial_pcc[section]:.2f}",
pad=12,
)
if col == 0:
ax.set_ylabel(label, fontsize=11, fontweight="bold", labelpad=12)
fig.colorbar(
sc, ax=axes, orientation="horizontal", fraction=0.035, pad=0.03,
label="Within-map expression percentile"
)
plt.show()
Verify the calculations¶
The checks below recompute the spot-level ranking example and verify the five displayed sections.
assert np.isclose(hit_rate, example["spot_hit_rate_at_50"])
assert np.isclose(ap_at_50, example["spot_ap_at_50"])
assert len(summary) == 5
assert summary["n_spots"].min() > 2_000
print("Checks passed for five sections and the worked ranking example.")
Continue¶
Continue to Spatial biological findings to recover and interpret a TLS-like immune niche in renal cell carcinoma.
